Description
Clip on Hinge – 0 Crank – with Damper,
Mounting Plate & Arm cover
Clip on Hinge – 9.5 Crank – with Damper,
Mounting Plate & Arm cover
Clip on Hinge – 16 Crank – with Damper,
Mounting Plate & Arm cover

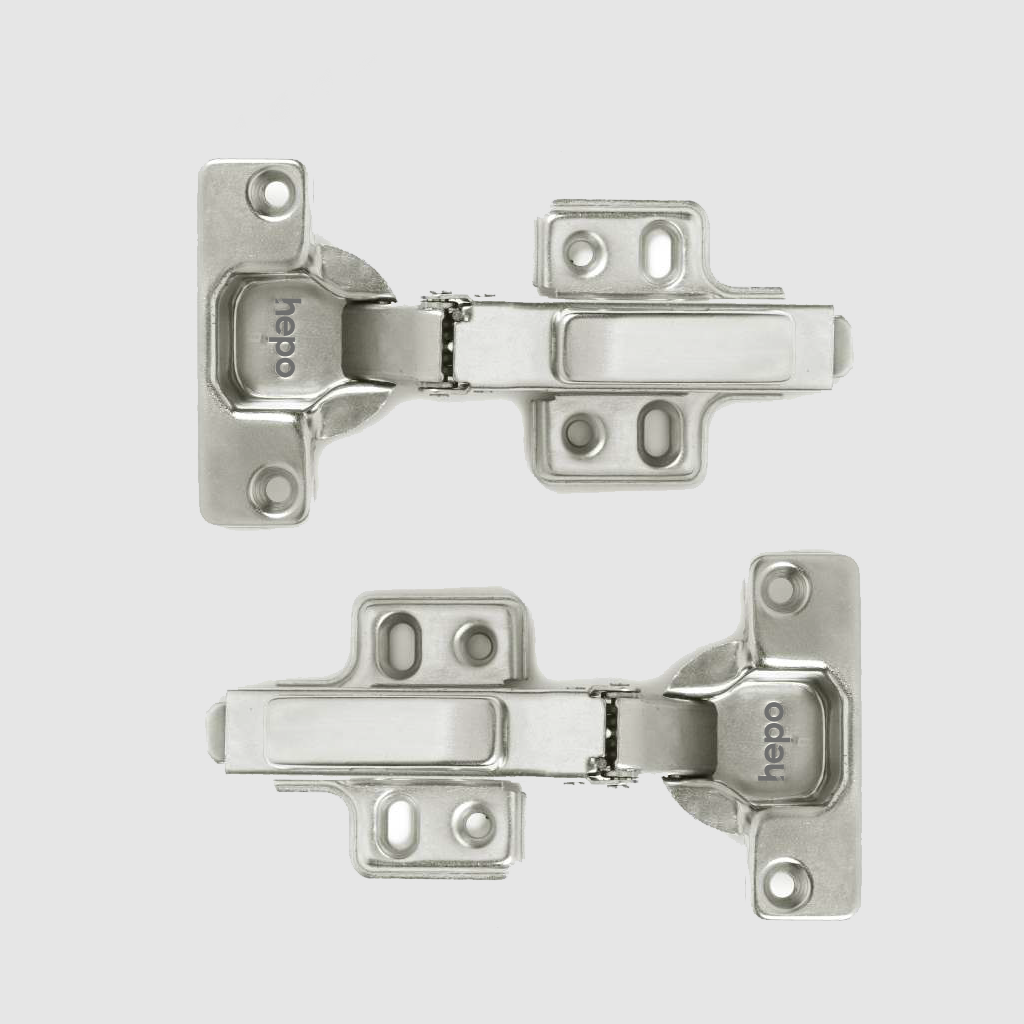

Hepo – Auto Closing Clip-on Soft Close Hinges with Mounting Plate (4 Hole) Pack of 1 (2 Hinges)
Price range: ₹232.00 through ₹244.00
Material: Steel Nickel plated
Concealed hinge with Clip on assembly
Quality Classification under EN 15570, Level 1
Available with integrated soft closing option
For door thickness: 16- 24 mm
Open angle: up to 105 °
Cup diameter: 35 mm
Cup depth: 11.5 mm
Both mounting plate available with 2 holes and 4 holes
Tested for 20,000 functional cycles
